Ghostbusters Proton Pack Lights




This is a simple analog circuit setup for LED proton pack lights.

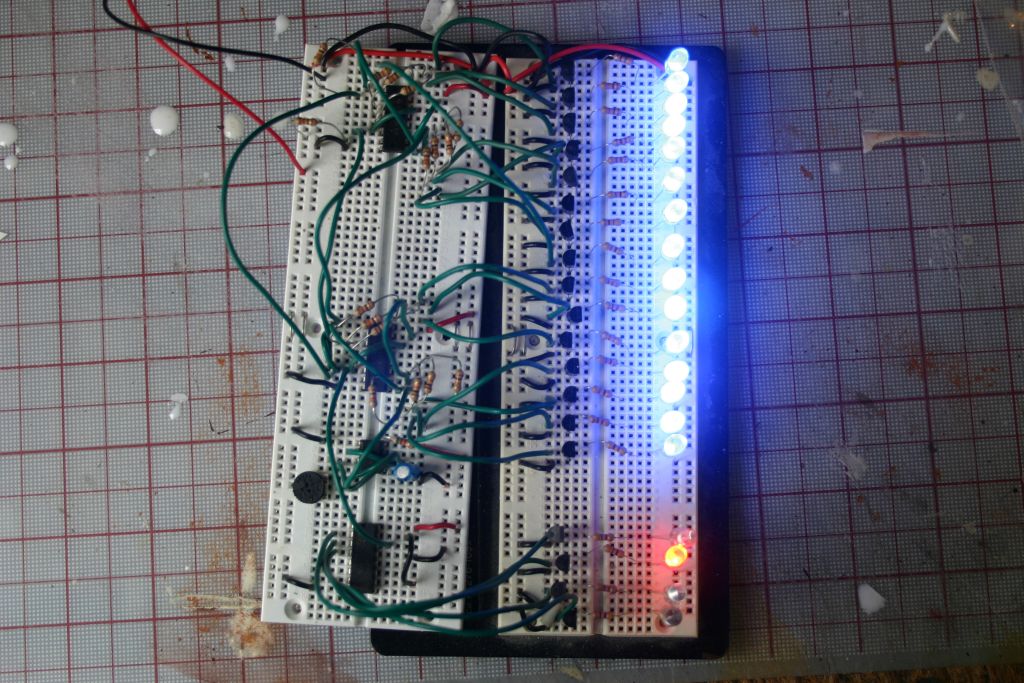

Breadboarded Circuit

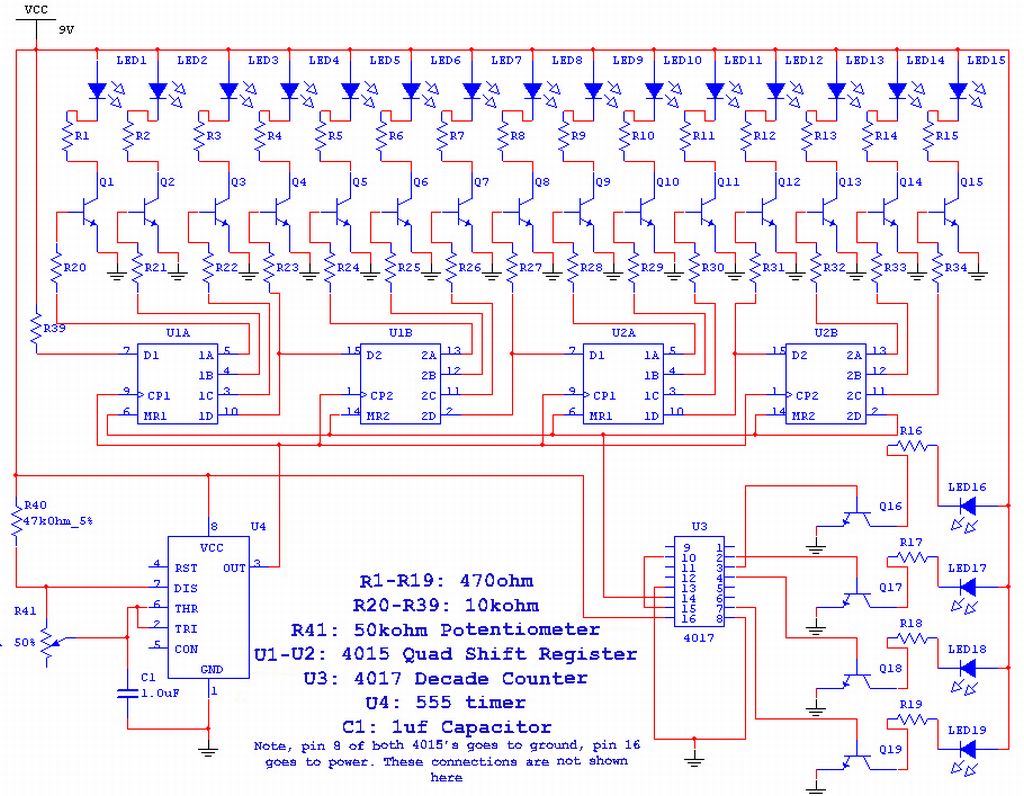

Once I had the circuit working I drew up the schematic:

Breadboarded Circuit

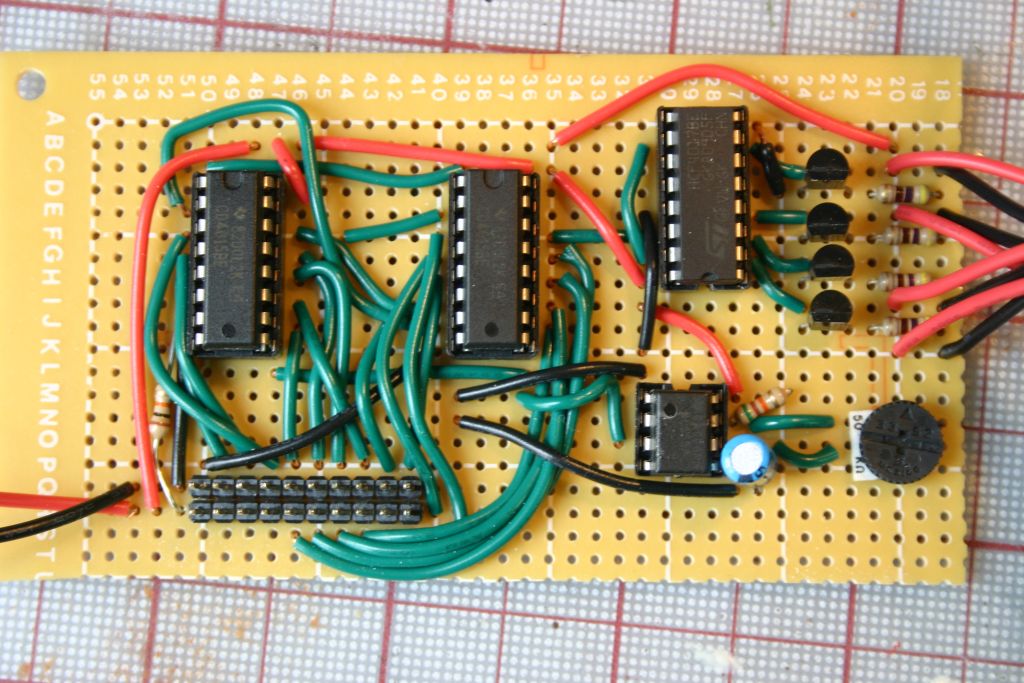

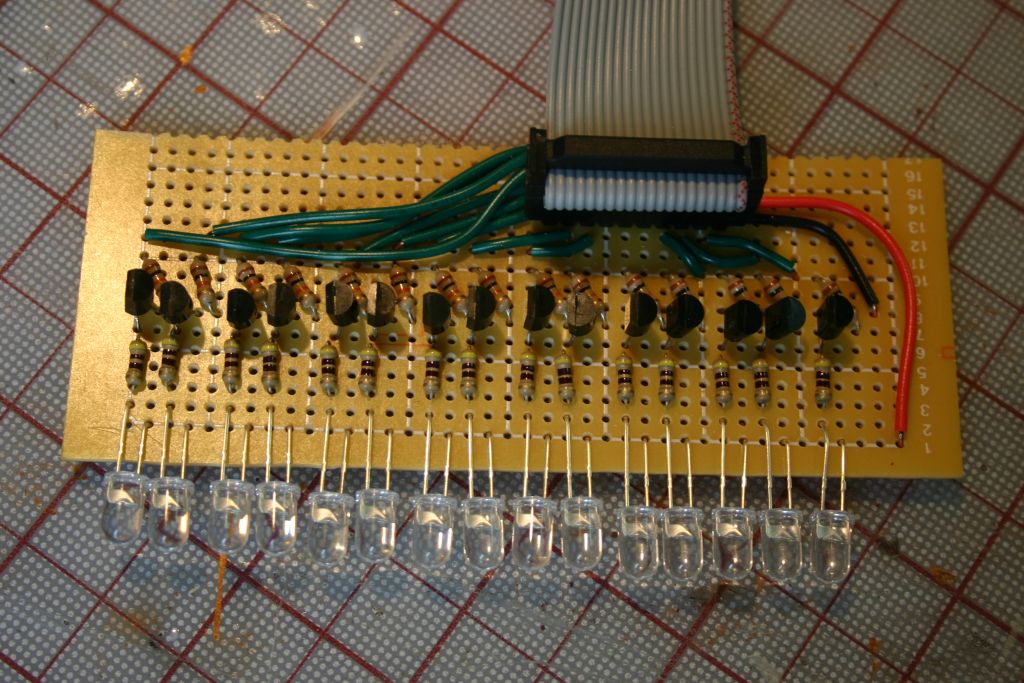

Then I had to shrink it down to fit in the pack.

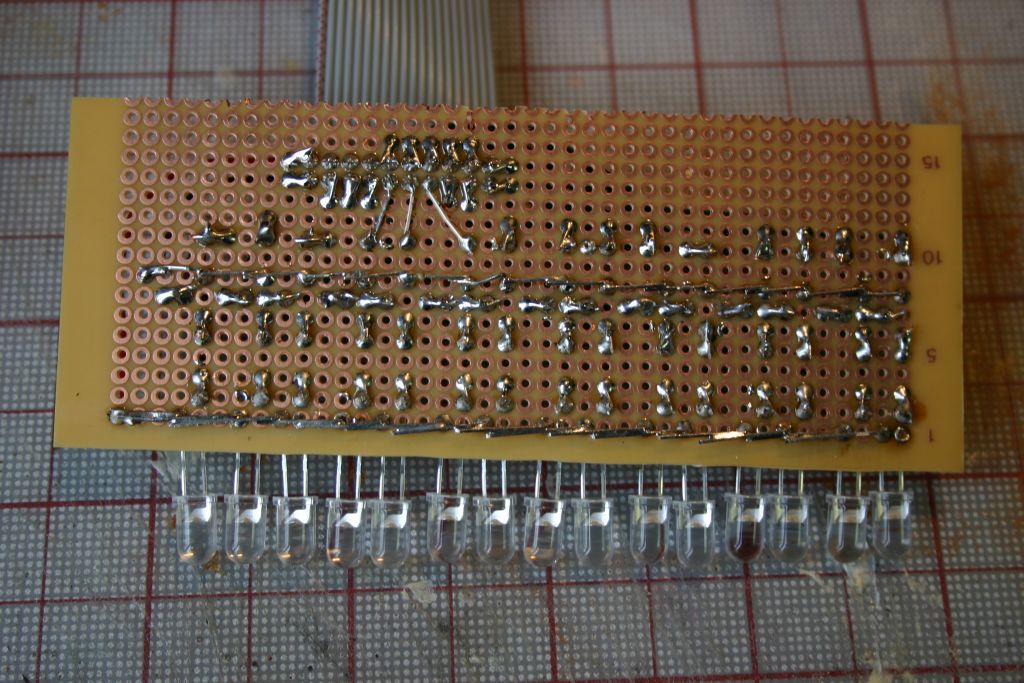

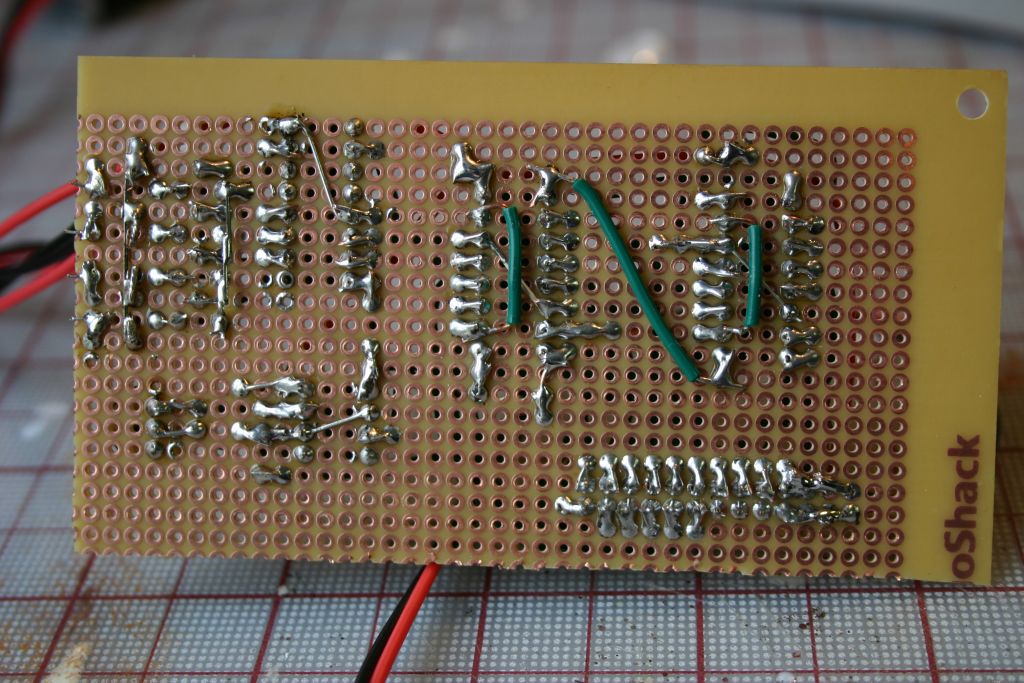

Powercell Front Powercell Back Cyclotron Front Cyclotron Back

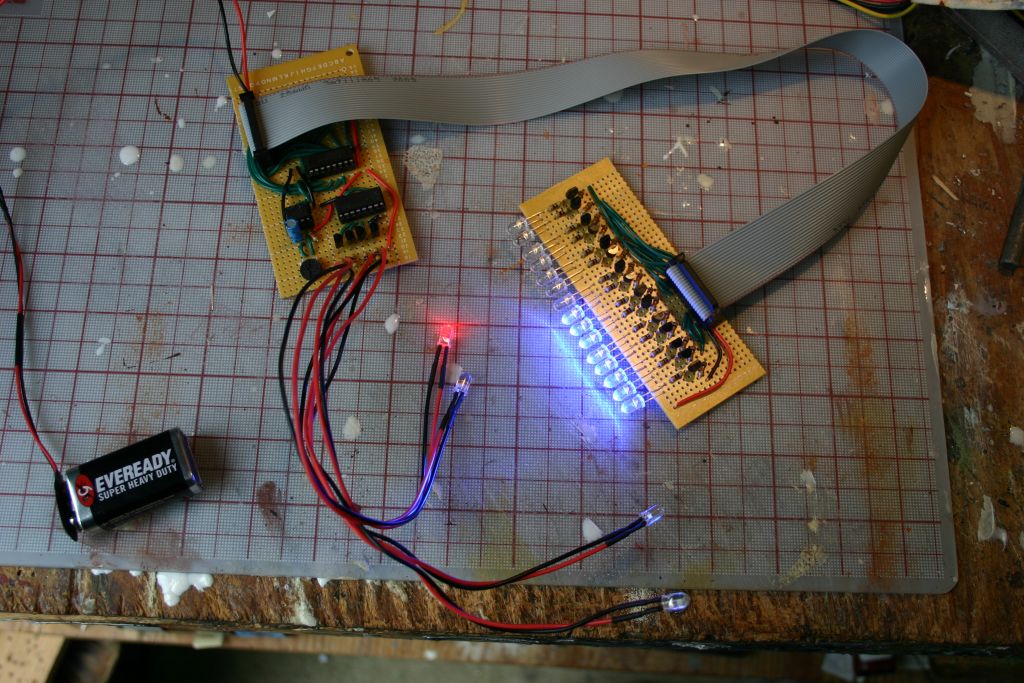

And the finished lights:

Finished Lights
